Product Introduction

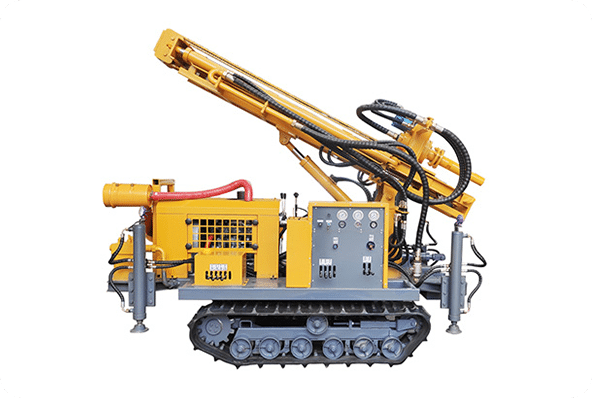

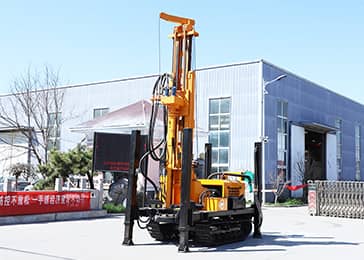

Elephant Machinery Water Well Drilling Rig is a compact, high-performance drilling solution designed
for fast,
efficient, and reliable drilling operations. Suitable for water well, geothermal, agricultural
irrigation, and industrial drilling projects, it delivers outstanding performance across a wide
range of geological conditions. Its crawler-mounted design ensures excellent mobility and stability,
making it ideal for mountainous, rocky, and uneven terrain. The rig can be equipped with an air
compressor, mud pump, or foam pump to meet different drilling requirements and improve working
efficiency.
Product Type
Crawler Water Well Drilling Rig
180-800 Meters Drilling Depth
Strong Off-road Ability
Fast Drilling Speed

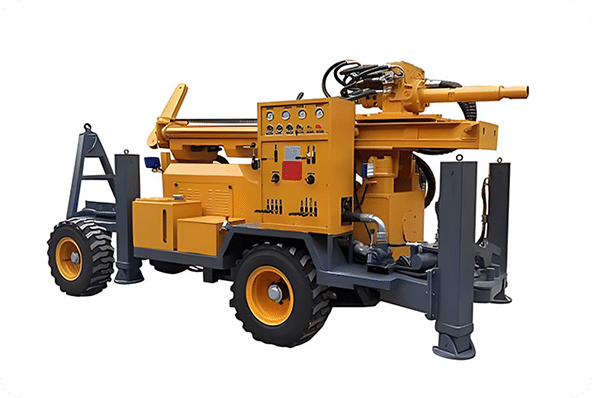

Trailer Mounted Water Well Drilling Rig
180-600 Meters Drilling Depth
Economical And Durability
Low Failure Rate

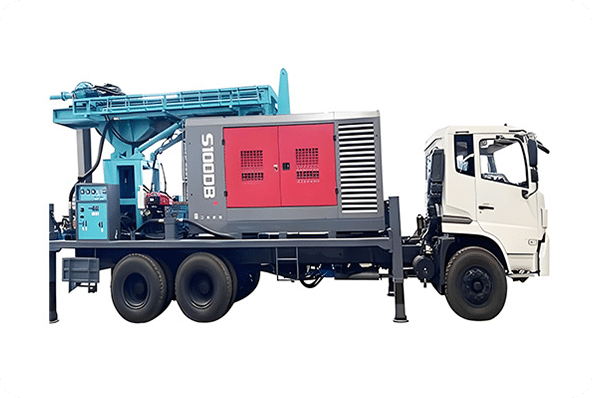

Truck-Mounted Water Well Drilling Rig
280-800 Meters Drilling Depth
Low temperature water well
Easy to Operate
Product Parameters
| Model | YG180 | YG200 | YG300 | YG400 | YG600 |
|---|---|---|---|---|---|
| Depth | 180meter | 200meter | 300meter | 400meter | 600meter |
| Hole diameter | 140-254mm | 140-305mm | 140-325mm | 140-350mm | 140-350mm |
| Power | 55KW | 65KW | 85KW | 92KW | 115KW |
| Weight | 4500kg | 5800kg | 7000kg | 10000kg | 12000kg |
Product Details
01
Water Well Drilling Rig + Mud Pump
The mud pump delivers drilling fluid into the borehole under high pressure, helping stabilize
the well wall, cool the drill bit, and efficiently remove cuttings for faster and safer
drilling.
Application: soil, sand, clay, and loose gravel formations.
02

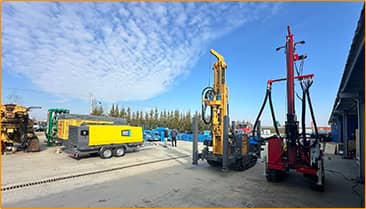

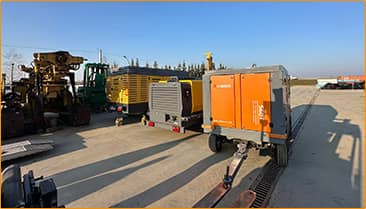

Water Well Drilling Rig + Air Compressor
The air compressor supplies continuous high-pressure air to remove rock cuttings, dust, and
groundwater from the borehole. This improves drilling speed, keeps the hole clean, and enhances
overall drilling efficiency.
Application: Hard rock, gravel, fractured formations, and other dry drilling
conditions.
03

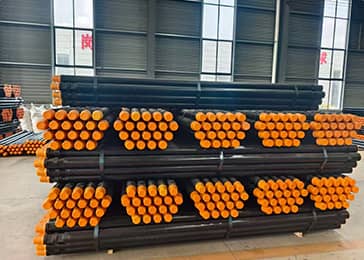

Water Well Drilling Rig Accessories
YG180: Ø76 mm Drill Pipe
YG200 / YG300: Ø89 mm Drill Pipe
YG300 & Above: Ø102 mm Drill Pipe
Optional accessories such as DTH hammers, adapters, and drill rods are available to suit
different drilling applications.
Video Center

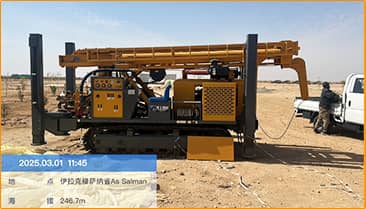

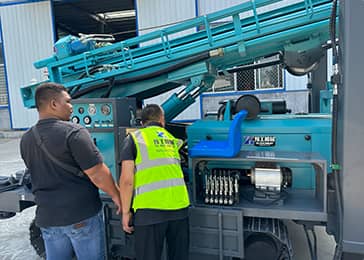

Customer Real Case

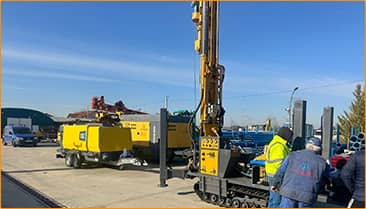

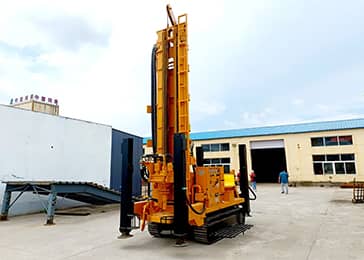

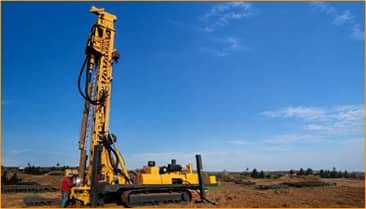

The images below showcase real customer projects from around the world. Trusted by over 1,000
customers, our water well drilling rigs deliver reliable performance across a wide range of
drilling conditions. Whether for water wells, agricultural irrigation, geothermal projects, or
industrial water supply, we provide dependable equipment and tailored solutions. Contact us
today for expert advice.

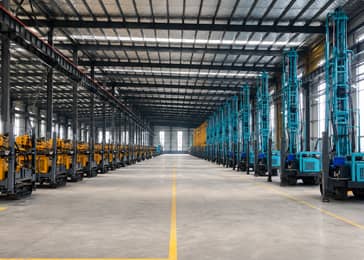

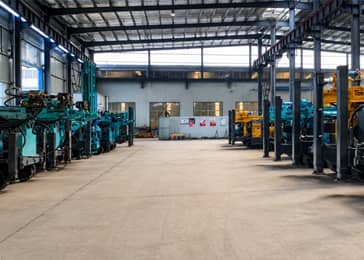

About Elephant Machinery
Elephant Machinery is backed by a professional R&D team and advanced manufacturing capabilities. Our
equipment has been exported to over 80 countries, earning the trust of customers worldwide through
reliable quality and dependable performance.
