Pile Drilling Rig
Boost efficiency with advanced crawler rigs for solar farms & foundations. Delivering 0-6m depth
& 80-600mm diameter, 1 rig replaces 30+ laborers to cut costs. Trusted in 100+ countries!
Crawler Rigs
Solar Farms
Video Center
360°rotation

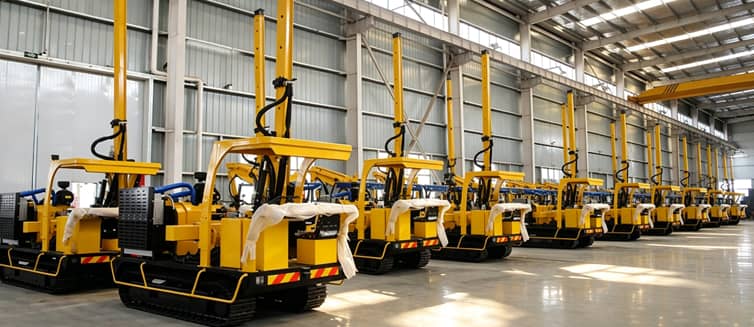

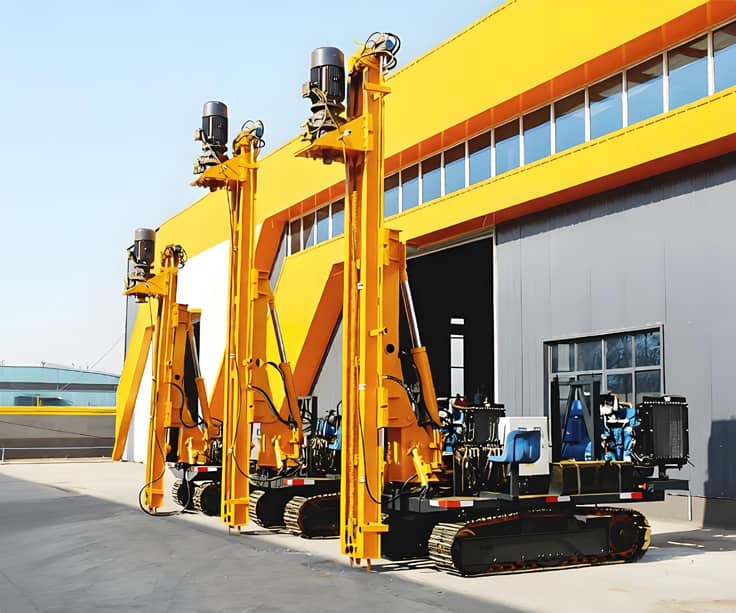

Display of factory-produced drilling rigs in bulk
Spiral drilling with a pile driver
Pile driver driving in ground anchors
Product Type
-

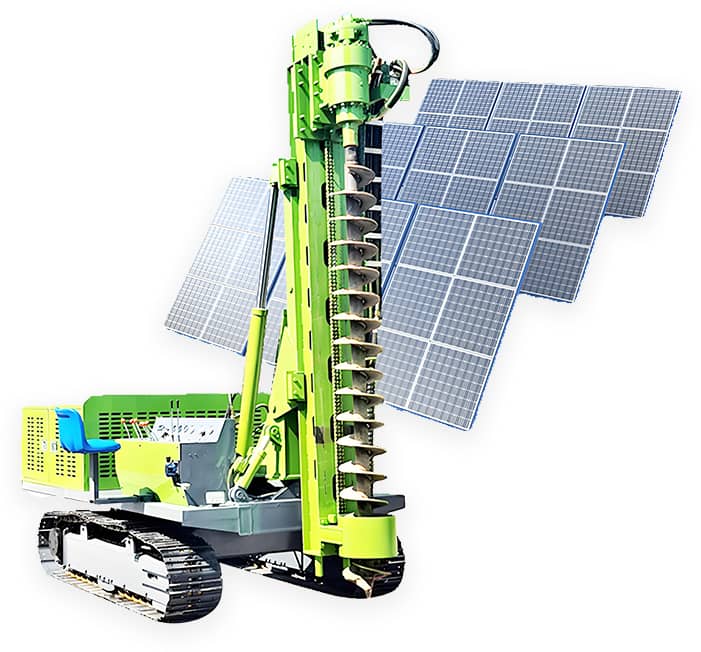

YG-6D Solar Panel Drilling rig with Auger & DTH drill
Engine: 4108 diesel motor, 85kw
Drilling depth: 0-6m
Drilling diameter: 80-500mm
Torque: 13000N.m
Rotary speed: 180r/min
-
YG-6M Solar Panel Pile Driver with hammer head
1Engine: 4108 diesel motor, 85kw
2Drilling depth: 0-6m
3Drilling diameter: <300mm
4Hydraulic hammer flow: 50-110L/min
5Impact frequency: 350-800bmp
-
YG-360 Crawler pile driver
Engine: Diesel, Yanmar 37KW
Mast travel: 7m
Max. Pile length: 6m
Strike energy: 1200J
Shipping dimensions: 3200*2250*2500mm
-
YG-680F PV pile Drilling rig
Engine: 4108 diesel motor, 85kw
Drilling depth: 0-30m
Drilling diameter: 100-400mm
Rotary speed: 80r/min
Rock hardness: 6-20F
Product Parameters
| Crawler Photovoltaic Pile Driver | |||
|---|---|---|---|
| Overall Dimensions | 4700*2200*2800mm | Hydraulic Hammer Flow | 50-110L/min |
| Track Shoe Width | 400mm | Impact Frequency | 350-800BMP |
| Motor | 4108 | Hydraulic System Pressure | 25mpa |
| Generator Power | 88kw Motor | Strong Wind For Heat Dissipation | yes |
| Drilling Depth | 0-6m | Oil Pump | 40/40/32 |
| Drilling Diameter | 80-600mm | Driving Speed | 3km/h |
Product Advantages
Power Head
The Output End Of The Fully
Hydraulic Jack Driving Force
Head Is Equipped With A Floating Device
Get A Free Quote

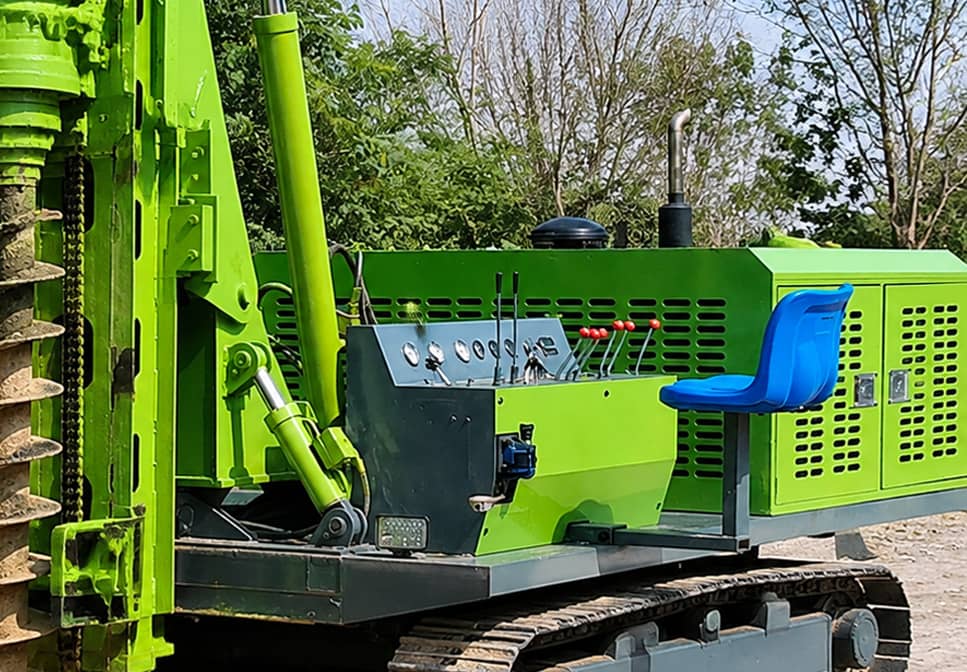

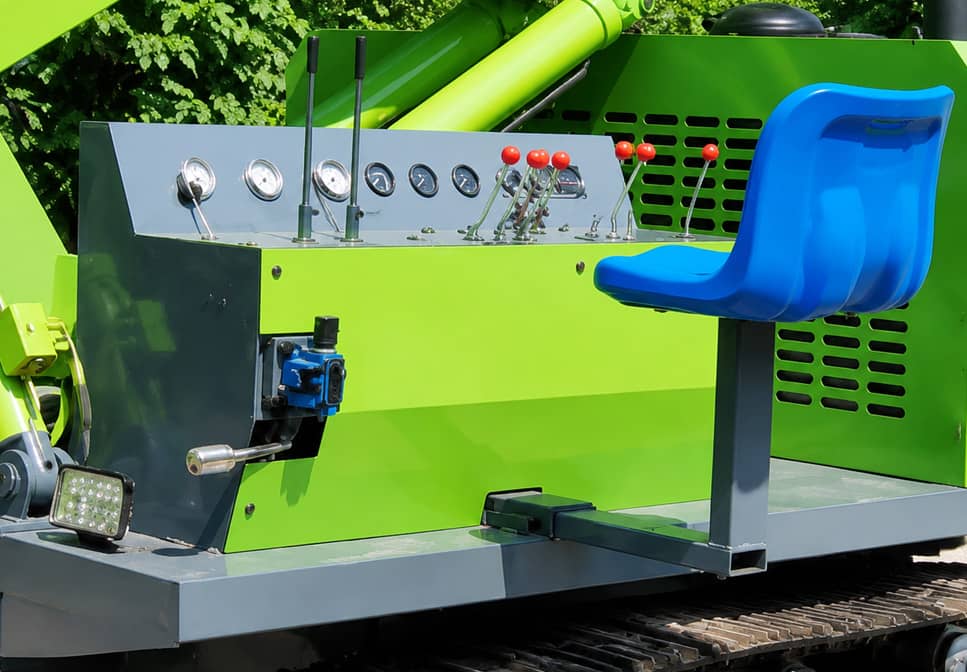

Operating System
Internal Intensive Operation Platform
Comfortable Operation
Get A Free Quote

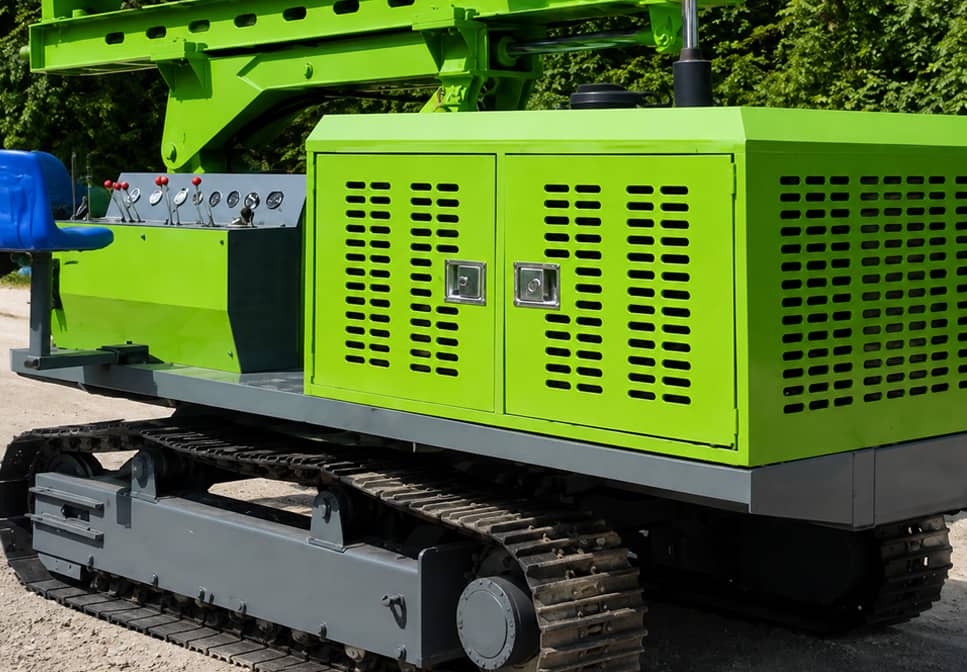

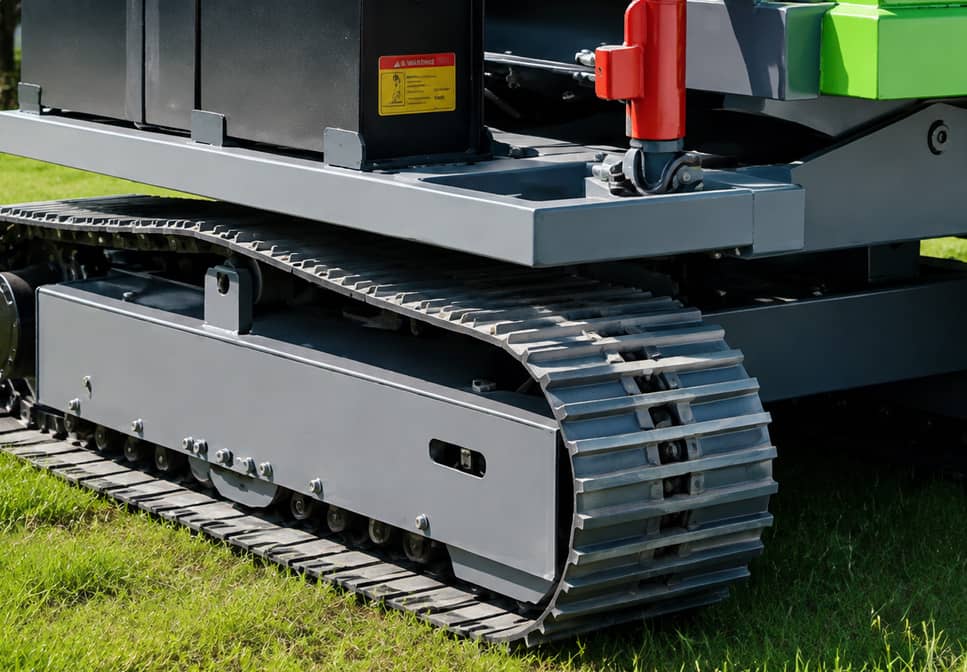

Crawler Walking
Multiple Steering Controls
Flexible Steering
Small Turning Radius
Get A Free Quote
Engine
Big brand Yuchai engine
Long life guaranteed
Get A Free Quote
About Yugong
Yugong Machinery is a professional manufacturer and supplier with over 20 years of experience,
specializing in drilling and construction machinery. Our main products include water well
drills, core drills, reverse circulation drills, rotary drills, DTH drills, horizontal
directional drills, and pile drivers. Adhering to the principle of "Quality First, Customer
Supreme," we strictly control every production process and product quality. With strong
technical expertise, mature manufacturing processes, and comprehensive after-sales service, our
equipment has been exported to many countries and regions worldwide.
8000⁺
8000 square meters manufacturing factory
150⁺
More than 150 corporate honors
100⁺
Sold to more than 100 countries on 6 continents
